EFK + Kafka 日志收集

[TOC]

方案

  1. 部署 FluentBit 从集群每个节点采集日志
  2. 推送 kafka 削峰并保存
  3. 部署 FileBeat 从 kafka 消费日志
  4. FileBeat 发送日志到 ElasticSearch 并保存
  5. 部署 Kibana 展示 ElasticSearch 数据
1
2
3
4
5
6
7
8
9
10
graph LR;
 a(节点)--采集-->b(FluentBit)
 b--推送-->c(Kafka)
 d(节点)--采集-->e(FluentBit)
 e--推送-->c(Kafka)
 f(节点)--采集-->g(FluentBit)
 g--推送-->c(Kafka)
 c--消费-->Logstash(Logstash)
 Logstash-- 发送 -->Elastic(Elastic)
 Elastic --展示-->Kibana(Kibana)

部署 FluentBit

官方文档：https://github.com/fluent/fluent-bit-kubernetes-logging

  1. 部署 service-account、role、role-binding

Kubernetes v1.21 以下

1
2
3
4
kubectl create namespace logging
kubectl create -f https://raw.githubusercontent.com/fluent/fluent-bit-kubernetes-logging/master/fluent-bit-service-account.yaml
kubectl create -f https://raw.githubusercontent.com/fluent/fluent-bit-kubernetes-logging/master/fluent-bit-role.yaml
kubectl create -f https://raw.githubusercontent.com/fluent/fluent-bit-kubernetes-logging/master/fluent-bit-role-binding.yaml

Kubernetes v1.22 以上

1
2
3
4
kubectl create namespace logging
kubectl create -f https://raw.githubusercontent.com/fluent/fluent-bit-kubernetes-logging/master/fluent-bit-service-account.yaml
kubectl create -f https://raw.githubusercontent.com/fluent/fluent-bit-kubernetes-logging/master/fluent-bit-role-1.22.yaml
kubectl create -f https://raw.githubusercontent.com/fluent/fluent-bit-kubernetes-logging/master/fluent-bit-role-binding-1.22.yaml

创建 fluent-bit-service-account.yaml

1
2
3
4
5
apiVersion: v1
kind: ServiceAccount
metadata:
  name: fluent-bit
  namespace: logging

创建fluent-bit-role-1.22.yaml

1
2
3
4
5
6
7
8
9
10
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  name: fluent-bit-read
rules:
- apiGroups: [""]
  resources:
  - namespaces
  - pods
  verbs: ["get", "list", "watch"]

创建fluent-bit-role-binding-1.22.yaml

1
2
3
4
5
6
7
8
9
10
11
12
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: fluent-bit-read
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: fluent-bit-read
subjects:
- kind: ServiceAccount
  name: fluent-bit
  namespace: logging
  1. 部署 ConfigMap

部署命令

1
kubectl apply -f fluent-bit-configmap.yaml

编写 fluent-bit-configmap.yaml

官网：https://docs.fluentbit.io/manual/pipeline/outputs/[kafka](https://so.csdn.net/so/search?q=kafka&spm=1001.2101.3001.7020)
正则：http://rubular.com/

正则表达式校验

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
apiVersion: v1
kind: ConfigMap
metadata:
  name: fluent-bit-config
  namespace: logging
  labels:
    k8s-app: fluent-bit
data:
  # Configuration files: server, input, filters and output
  # ======================================================
  fluent-bit.conf: |
    [SERVICE]
        Flush         1
        Log_Level     info
        Daemon        off
        Parsers_File  parsers.conf
        HTTP_Server   On
        HTTP_Listen   0.0.0.0
        HTTP_Port     2020

    @INCLUDE input-kubernetes.conf
    #@INCLUDE filter-kubernetes.conf
    @INCLUDE output-kafka.conf

  input-kubernetes.conf: |
    [INPUT]
        Name              tail
        Tag               kube.njc.dev.permission
        Path              /var/log/containers/*tech-dept*.log
        DB                /var/log/flb_kube.db
        Mem_Buf_Limit     100MB
        Rotate_Wait       60
        Skip_Long_Lines   On
        Refresh_Interval  10
        Multiline         On
        Parser_Firstline  log_date
        Parser_1          log_attributes

  filter-kubernetes.conf: |
    [FILTER]
        Name                kubernetes
        Match               kube.njc.*
        Kube_URL            https://kubernetes.default.svc:443
        Kube_CA_File        /var/run/secrets/kubernetes.io/serviceaccount/ca.crt
        Kube_Token_File     /var/run/secrets/kubernetes.io/serviceaccount/token
        Kube_Tag_Prefix     kube.var.log.containers.
        Merge_Log           On
        Merge_Log_Key       log_processed
        K8S-Logging.Parser  On
        K8S-Logging.Exclude Off

    [FILTER]
        Name         parser
        Match        kube.njc.dev.permission
        Key_Name     log
        Parser       njc_service_log
        Reserve_Data  On
        Preserve_Key  On

  output-kafka.conf: |
    [OUTPUT]
        Name           kafka
        Match          *
        Brokers        192.168.5.31:9092,192.168.5.32:9092,192.168.5.33:9092
        Topics         java-prod-log
        format         json
        timestamp_key  kafkatimestamp
        timestamp_format iso8601
        rdkafka.message.max.bytes    200000000
        rdkafka.fetch.message.max.bytes    204857600

  parsers.conf: |
    [PARSER]
        Name         log_date
        Format       regex
        Regex        /^\s*(?<timeDate>[^ ]* [^ ]*)\s\[\s*(?<serverName>[^\]]*)\]\[\s*(?<level>[^\]]*)\](?<message>[\s\S]*)/

    [PARSER]
        Name        log_attributes
        Format      regex
        Regex       /^\s*(?<timeDate>[^ ]* [^ ]*)\s\[\s*(?<serverName>[^\]]*)\]\[\s*(?<level>[^\]]*)\](?<message>[\s\S]*)/

修改 INPUT 的 Path，按需过滤容器日志
注意 output-kafka 的 Match 和 FILTER 的 Match 以及 INPUT 的 Tag 一样
修改 kafka 的 Brokers 和 Topics

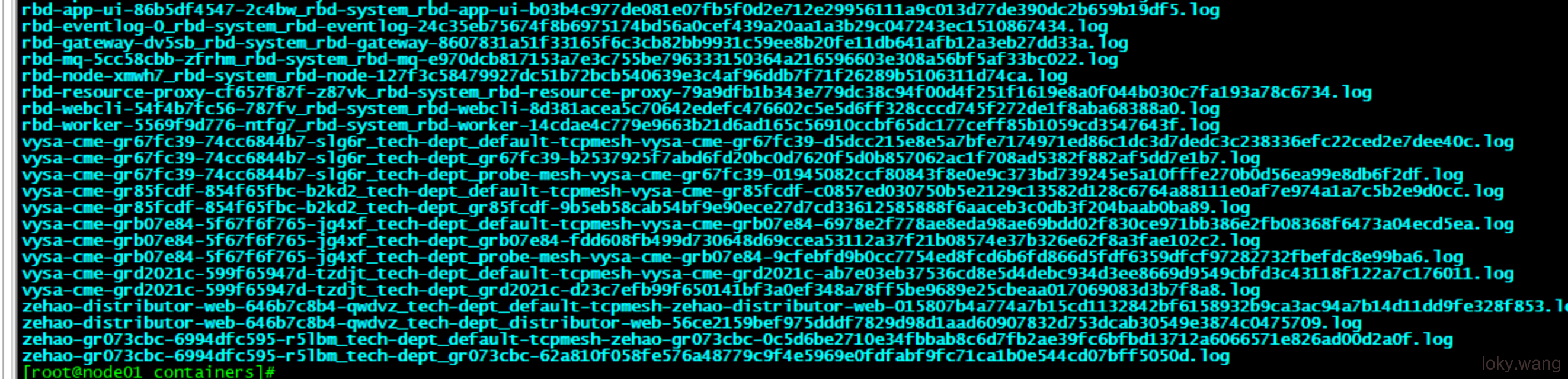

集群节点日志存储情况

image-20230922133531231

我们只关注tech-dept命名空间下的日志即可，因为此命名空间下的日志基本都是业务日志，少量的中间件日志，可以忽略不计

  1. 部署 DaemonSet

    部署命令

    1
    kubectl apply -f fluent-bit-ds.yaml

    编写 fluent-bit-ds.yam

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    47
    48
    49
    50
    51
    52
    53
    54
    55
    56
    57
    58
    59
    60
    61
    62
    63
    64
    65
    66
    67
    68
    69
    70
    71
    72
    73
    74
    75
    apiVersion: apps/v1
    kind: DaemonSet
    metadata:
      name: fluent-bit
      namespace: logging
      labels:
        k8s-app: fluent-bit-logging
        version: v1
        kubernetes.io/cluster-service: "true"
    spec:
      updateStrategy:
        type: RollingUpdate
      selector:
        matchLabels:
          k8s-app: fluent-bit-logging
      template:
        metadata:
          labels:
            k8s-app: fluent-bit-logging
            version: v1
            kubernetes.io/cluster-service: "true"
          annotations:
            prometheus.io/scrape: "true"
            prometheus.io/port: "2020"
            prometheus.io/path: /api/v1/metrics/prometheus
        spec:
          containers:
          - name: fluent-bit
            image: fluent/fluent-bit
            imagePullPolicy: Always
            ports:
            - containerPort: 2020
            readinessProbe:
              httpGet:
                path: /api/v1/metrics/prometheus
                port: 2020
            livenessProbe:
              httpGet:
                path: /
                port: 2020
            resources:
              requests:
                cpu: 5m
                memory: 10Mi
              limits:
                cpu: 200m
                memory: 400Mi
            volumeMounts:
            - name: varlog
              mountPath: /var/log
            - name: varlibdockercontainers
              mountPath: /var/lib/docker/containers
              readOnly: true
            - name: fluent-bit-config
              mountPath: /fluent-bit/etc/
          terminationGracePeriodSeconds: 10
          volumes:
          - name: varlog
            hostPath:
              path: /var/log
          - name: varlibdockercontainers
            hostPath:
              path: /var/lib/docker/containers
          - name: fluent-bit-config
            configMap:
              name: fluent-bit-config
          serviceAccountName: fluent-bit
          tolerations:
          - key: node-role.kubernetes.io/master
            operator: Exists
            effect: NoSchedule
          - operator: "Exists"
            effect: "NoExecute"
          - operator: "Exists"
            effect: "NoSchedule"

    部署结果：使用 DaemonSet 部署，保证每个 node 节点均运行着一个 pod，可以采集所有节点的日志

    image-20230922133924491

    部署日志：可以看见成功连接 kafka 集群
    在这里插入图片描述

部署Logstash

在Rainbond中部署Logstash服务，可以横向扩展

构建源：

1
2
3
4
创建方式: 镜像
镜像名称: docker.elastic.co/logstash/logstash:7.17.10
版本:7.17.10
启动命令:logstash -f ./config/kafka-logstash-es.conf

配置文件：

  1. kafka-logstash-es

    名称： kafka-logstash-es

    配置文件挂载路径：/usr/share/logstash/config/kafka-logstash-es.conf

    配置文件内容：

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    input {
        kafka {
            bootstrap_servers => "192.168.5.31:9092,192.168.5.32:9092,192.168.5.33:9092"
            topics => ["java-test-log"]
            group_id => "fluentd-test-log"
            client_id => "logstash-test"
            consumer_threads => 1
            decorate_events => true
            codec => "json"
    	}
    }

    filter {
        json {
            source => "message"             #将message字段进行解析
            skip_on_invalid_json => true    #无效的json则跳过
        }

    	date {
            match => ["timeDate", "ISO8601"]
            target => "@timestamp"
        }
    	mutate {
            remove_field => ["_id"]
    	    remove_field => ["@verson"]
    	    remove_field => ["tags"]
    	    remove_field => ["_type"]
            remove_field => ["_score"]
            remove_field => ["_index"]
            remove_field => ["kafkatimestamp"]
        }
    }

    output {
    	#elasticsearch {
        #    action => "index"
        #    hosts => ["192.168.5.35:9200","192.168.5.36:9200","192.168.5.37:9200"]
        #    index => "k8s-test-log-%{[serverName]}-%{+yyyy.MM.dd}"
        #    user => "elastic"
        #    password => "sdbj123987"
    	#}
        stdout {
            codec => rubydebug
        }
    }

  2. logstash

    名称：logstash

    配置文件挂载路径：/usr/share/logstash/config/logstash.yml

    配置文件内容：

    1
    config.support_escapes: true
